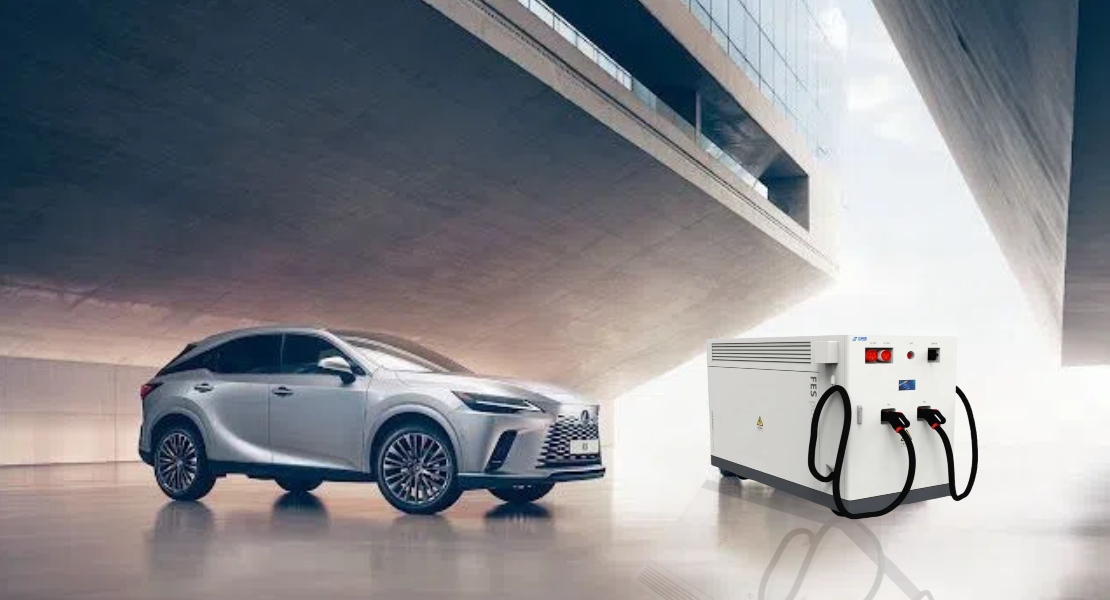

What is the Structure of E-Station 120?

Energy Storage Battery Module: Adopts a high-capacity lithium iron phosphate battery pack (209kWh) with a cycle life of over 3000 times. It features outstanding safety and stability, meeting the needs of high-frequency charging and discharging.

Charge-Discharge Control Module: Integrates AC/DC rectification and DC/DC conversion technologies, intelligently adapting to vehicle batteries with a charge-discharge efficiency of 92%. The PFC function improves electrical energy utilization and reduces operating costs.

Interface and Connection System

Input Interface: Equipped with an AC 380V three-phase industrial plug and a DC 500V interface, supporting energy access in multiple scenarios.

Output Interface: 2 CCS2 DC output ports (single port 160A, 120kW fast charging), compatible with over 95% of mainstream vehicle models; the dust-proof design ensures interface reliability.

Safety Protection System

Physical Protection: IP55 protection rating, high-strength aluminum alloy frame, and cold-rolled steel sheet shell; lifting rings and universal wheel design for easy handling.

Emergency Protection: Emergency stop button (rotary reset) and over-temperature/over-voltage/short-circuit protection circuits ensure operational safety.

Human-Computer Interaction System

7-inch Touch Screen: Displays real-time parameters such as power and power, supporting multi-language operation.

LED Indicator Array: 4 groups of color indicators intuitively feed back device status, improving operation efficiency.

Additional Optimized Structures

Heat Dissipation System: Intelligent temperature-controlled fan combined with heat dissipation grilles, adapting to environments from -20℃ to 50℃.

Lighting System: Top LED lights ensure safety and convenience during night charging.
