MOBILE EV CHARGER

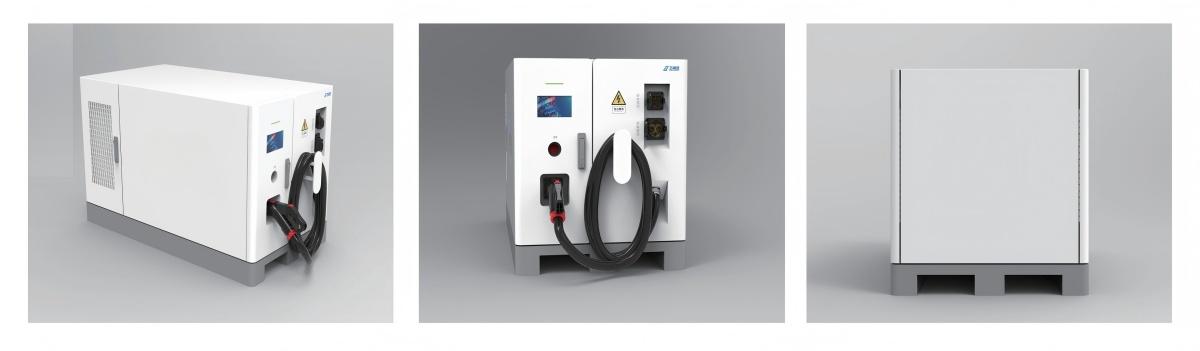

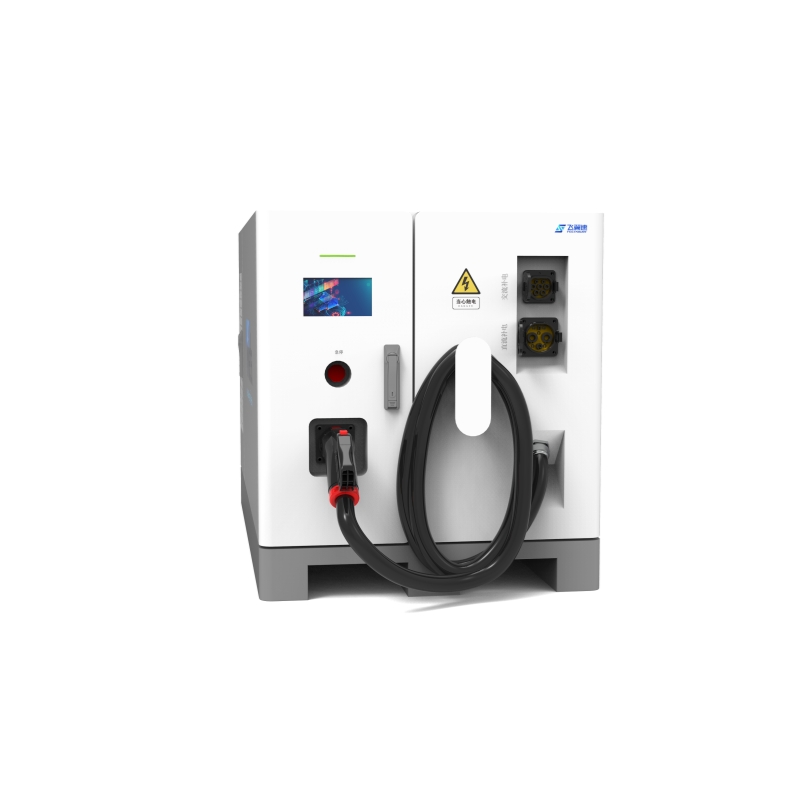

Meta: Mobile EV charging power station (46-60KW)

Meta series mobile EV charger is a highly adaptable Electric Vheicle Supply Equipment (EVSE).

It is not just an DC charging station, but also with battery integrated, so it can move anywhere request charging.

Product Details

BaELECTRICAL PARAMETERSs ic Parameters Meta+ 46kW Meta+ 60kW
EV Charging Power/ Battery Energy	46kW / 46 kW∙h	60kW / 60 kW∙h
Dimension (WDH)	1500800880mm
Weight	510 kg	710 kg
Ingress Protection Level	IP54
EV Charging System
EV Charging Voltage	200-1000V DC (Constant power voltage: 400-1000 V DC)
EV Charging Current	150A	250A
Charging Connector Type	GB/T, CCS2 (5 meters)
Charging Authentication	Plug & Charge
Battery Recharging System
Battery Power Capacity	46 kW.h	60 kW.h
AC Recharge Voltage / Frequency	Three-phase 400V AC ± 10% (50/60Hz)
AC Recharge Power	40kW
DC Recharge Voltage (Optional)	400-490V DC	540 - 650V DC
DC Recharge Power (Optional)	Max. 46kW DC (Optional)	Max. 60kW DC (Optional)
Recharge ports	GB/T, CCS2 (5 meters)
Battery Type	LiFePO4
Ingress Protection Level	IP67
Battery Cooling System	Liquid-cooling

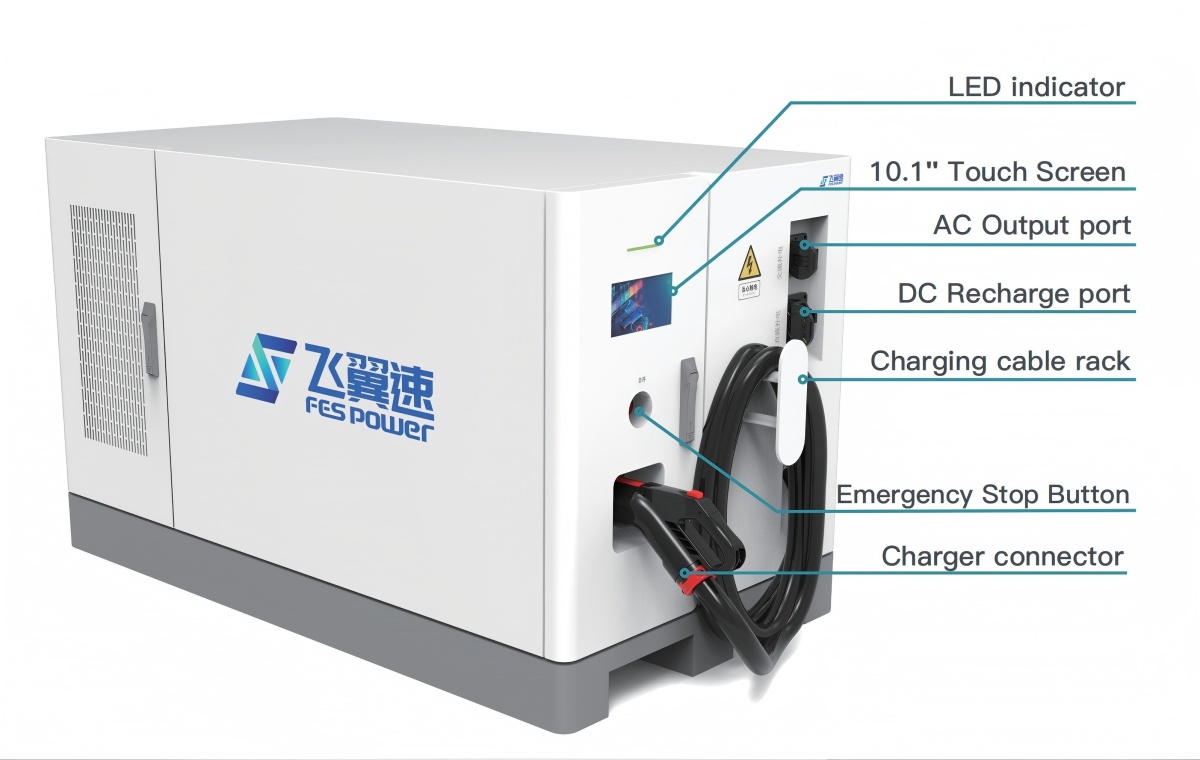

MORE DETAILS

DC Fast Charging

Output power reach 46-60kW to provide wonderful charging experience.

Backup AC power supply

Meta could be used as power source for AC power supply (AC 230-400V)

Type A 30mA + 6mA DC Leakage Protection

Ensures comprehensive electrical safety by combining Type A AC leakage detection with specialized 6mA DC residual current monitoring.

EV charging power station
