COMMERCIAL CHARGING

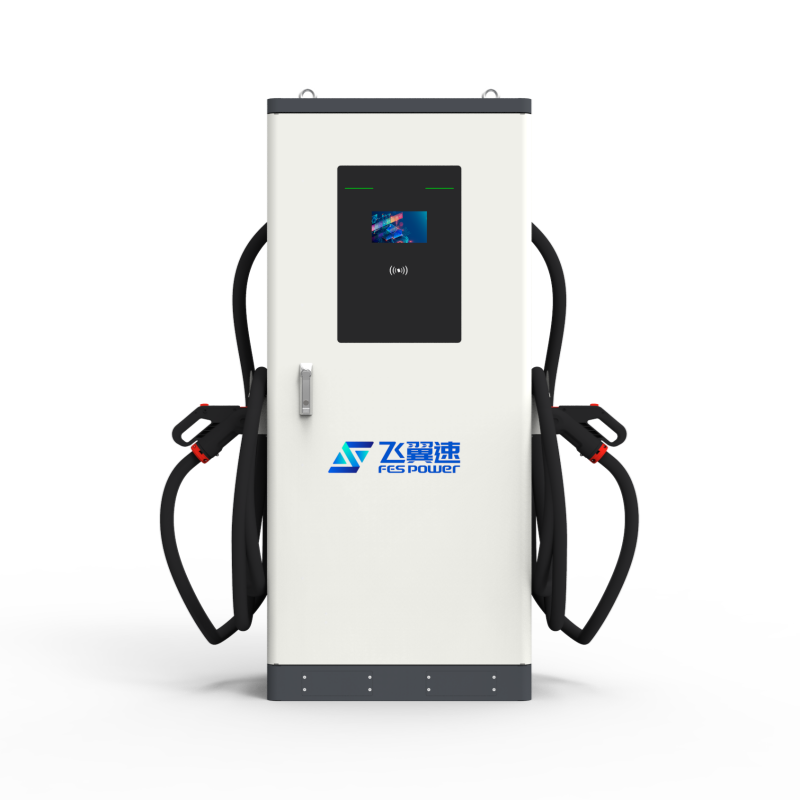

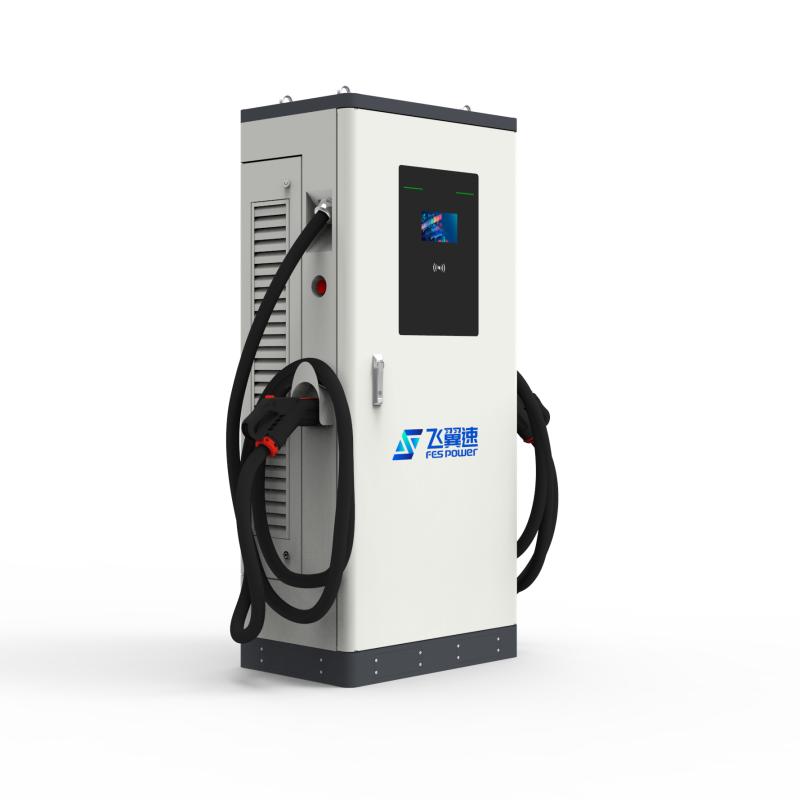

D30 Ultra rapid EV charger 120/160kW

EV charging, rapid and ultra-rapid EV chargers are perfect for a quick turnaround and are usually found on major routes, at charging hubs, and on-the-go locations.

With speeds of between 60-180kW (ultra-rapid), these chargers allow you to fully charge (80%) in 10 minutes – 1 hour.

The share of EV rapid and ultra-rapid charge points is accelerating. This trend will vastly impact electric vehicle drivers, slashing recharging times and massively reducing range anxiety among electric vehicle motorists. ower Range: 60kW - 120kW

Inquire Now

Product Details

MORE DETAILS

Model No. D30-120 D30-180
AC Input	Number of phase/wire	3-Phase / L1,L2,L3,N,PE
	Voltage Rating	380~415Vac
	Max.Input Amperage	220A	300A
	Frequency	55Hz ±10Hz
	Power factor	PF≥0.98@Rated load
	Efficiency	>91%
DC Output	Maximum Power	120KW	180KW
	Voltage Operating Range	200-1000V
	Maximum Current	250A
	Connector and Cable	CCS2 with 4M cable
Function
EV Communication		ISO 15118
User Authentication		ISO 14443 A/B
Display		7 inch touch screen
Network		Ethernet,4G,Wi-Fi
Connectivity		OCPP 1.6J
Environment
Storage Temperature		-30℃ to 70℃
Operating Temperature		-20℃ to 50℃
Anti-vandalism		IK10(not include LCD &RFID cover)
Ingression		IP54
Relative Humidity		Up to 95%non-condensing
Cooling		Forced Air
Operating noise level		≤65dB
Altitude		≤2000M

Ultra Rapid EV charging

Next-level EV charging, rapid and ultra-rapid chargers are perfect for a quick turnaround and are usually found on major routes, at charging hubs, and on-the-go locations.

With speeds of between 60-180kW (ultra-rapid), these chargers allow you to fully charge (80%) in 10 minutes – 1 hour. The share of EV rapid and ultra-rapid charge points in the UK is accelerating. This trend will vastly impact electric vehicle drivers, slashing recharging times and massively reducing range anxiety among electric vehicle motorists.

Ideal for for fleet depots, commercial & public charging.

With a maximum power of 240KW and a charging conversion efficiency of up to 96%, the D30 provides fast and stable charging for electric vehicles. It offers two charging modes: App mode and RFID mode, and is equipped with an emergency stop button, allowing flexible charging in various scenarios.

RELIABLE AND SAFETY

Type B DC Leakage Protection

Ensures comprehensive electrical safety by combining leakage detection with specialized 6mA DC residual current monitoring.

Multiple Protection Based on Software and Hardware

Real-time load balancing, ground fault simulation testing, and firmware-verified command execution.

Hot Tags : 160kW DC EV charger Super Fast EV Charger DC fast EV charger 180kW DC EV charger OCPP EV charger Commercial EV charger Fast EV charger Ultra Rapid EV charger 160kW Commercial EV charger
