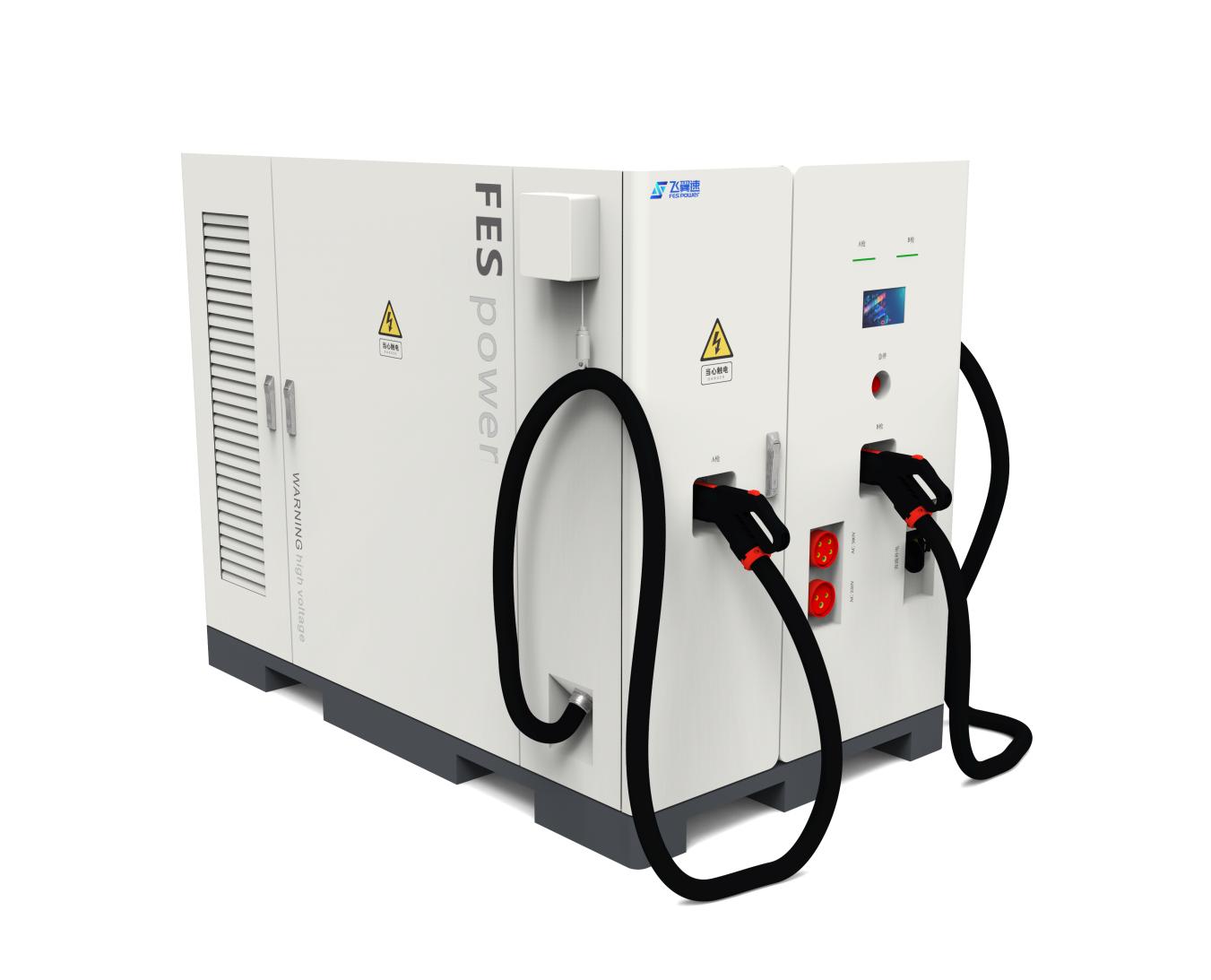

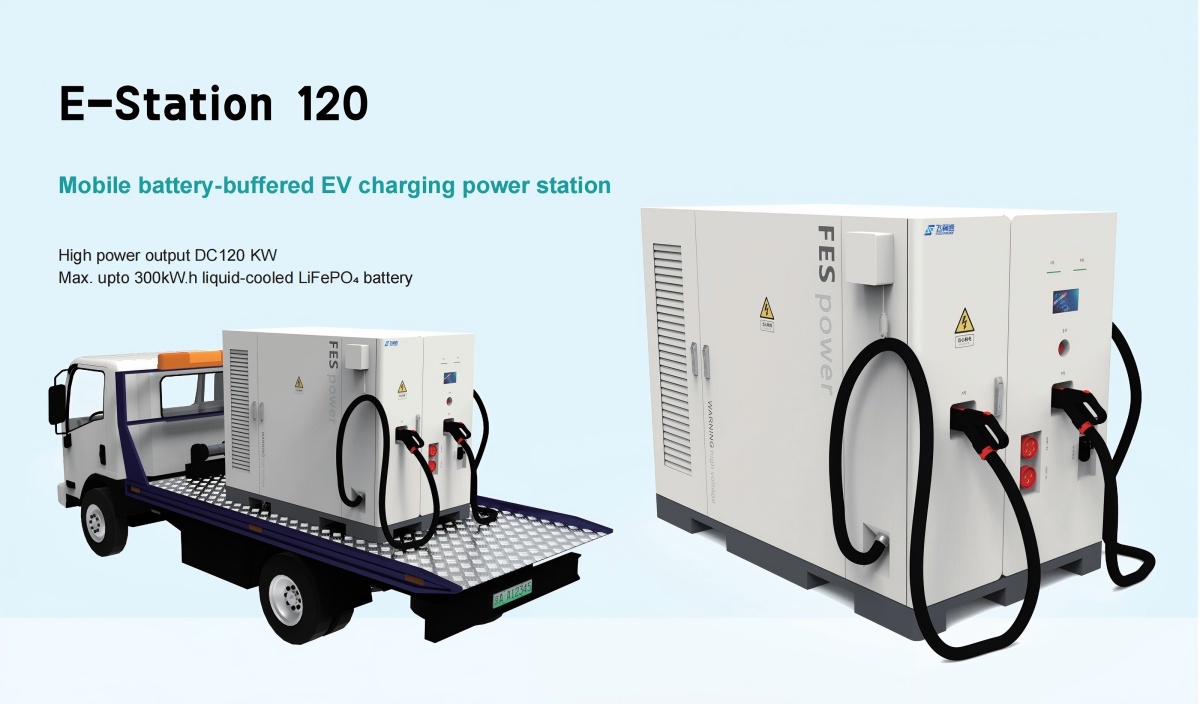

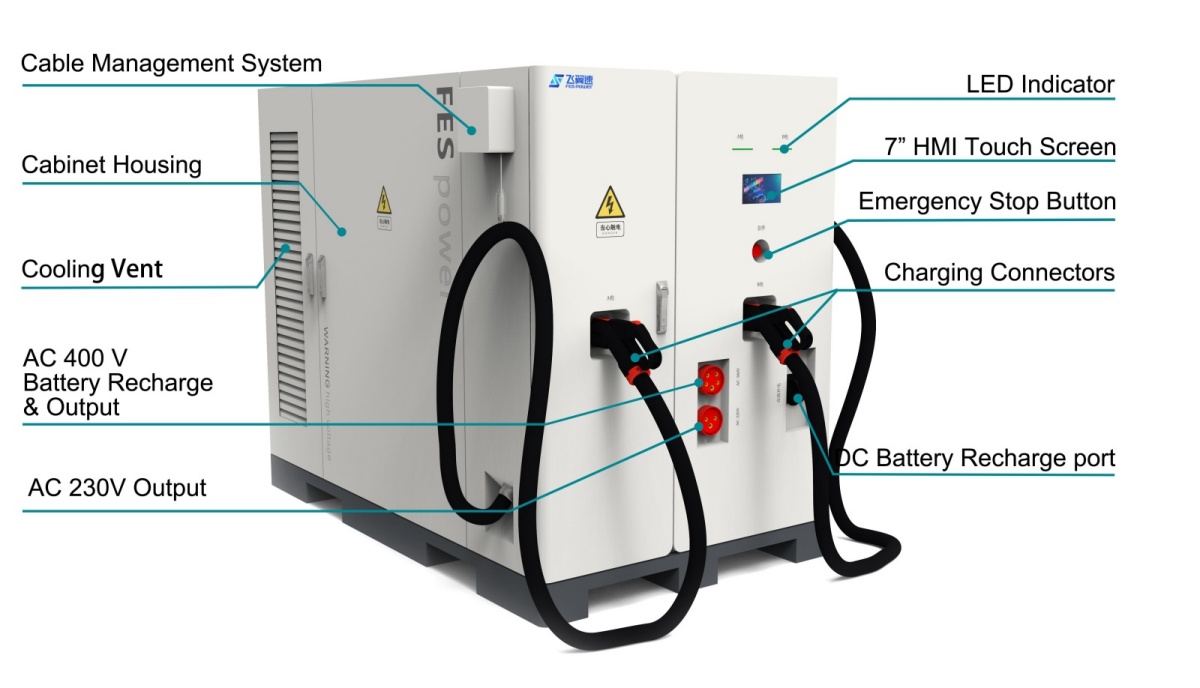

E-Station 120 Mobile EV charging power station
With high power output DC120 KW, upto 209kW.h liquid-cooled battery capacity.
|
Basic Parameters |
E-Station 120 |
|
EV Charging Power/ Battery Energy |
120kW / 209 kW∙h |
|
Dimension (W*D*H) |
1900*1000*1700mm |
|
Weight |
3200 KGS |
|
Ingress Protection Level |
IP54 |
|
Power Output System |
|
|
EV Charging Voltage |
200-1000V DC (Constant power voltage: 400-1000 V DC) |
|
EV Charging Current |
150A |
|
Charging Connector Type |
GB/T, CCS2 (5 meters) |
|
Charging Authentication |
Plug & Charge |
|
AC Power Output |
AC 240 -380V |
|
Battery Recharging System |
|
|
Battery Power Capacity |
200 kW.h |
|
AC Recharge Voltage / Frequency |
Three-phase 380V AC ± 10% (50/60Hz) |
|
AC Recharge Power |
120kW |
|
DC Recharge Voltage (Optional) |
250-360V DC |
|
DC Recharge Power (Optional) |
Max. 120kW DC (Optional) |
|
Recharge ports |
GB/T, CCS2 (5 meters) |
|
Battery Type |
LiFePO4 |
|
Ingress Protection Level |
IP67 |
|
Battery Cooling System |
Liquid-cooling |
|
Others parameters |
|
|
Working Temperature |
-25°C～55°C |
|
Working Humidity |
≤95% |
|
Vibration |
＜0.5g |
|
Noise |
＜65 dB |
|
Working Altitude |
＜2000 m |
MORE DETAILS
 |
 |

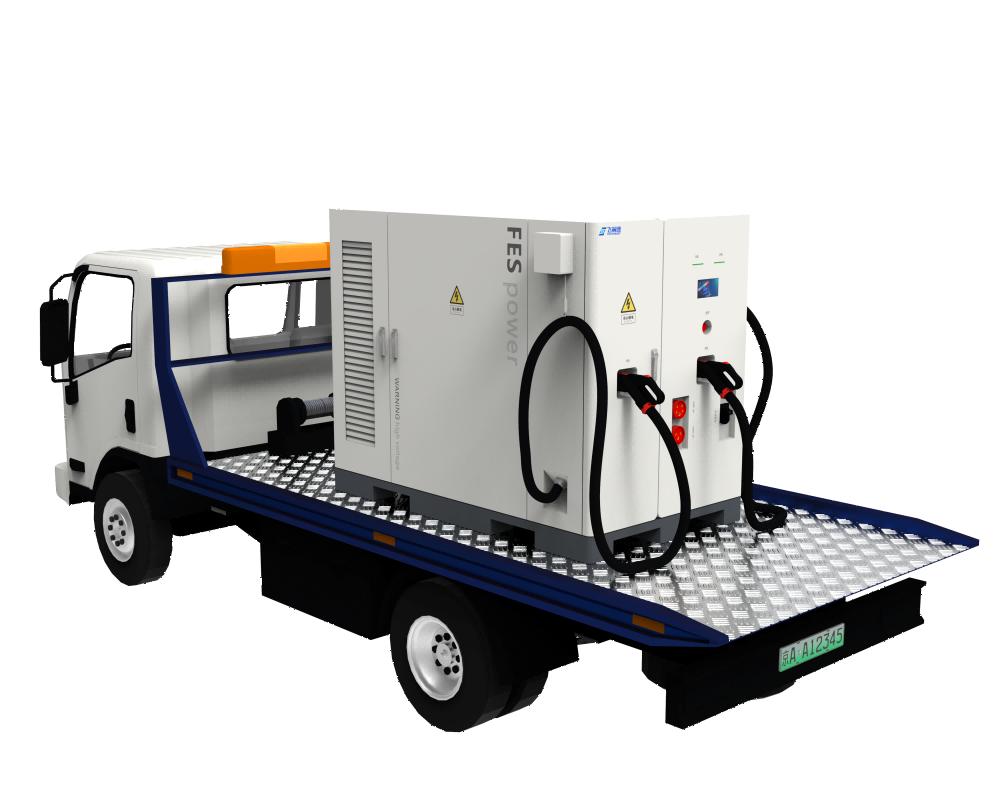

| Forklift basement type | Driving chassis type |
Meta series mobile EV charger is a highly adaptable Electric Vheicle Supply Equipment (EVSE). It is not just an DC charging station, but also with battery integrated, so it can move anywhere request charging.
Meta+ mobile EV charger is a highly adaptable Electric Vheicle Supply Equipment (EVSE). It is not just an DC charging station, but also with battery integrated, so it can move anywhere request charging.

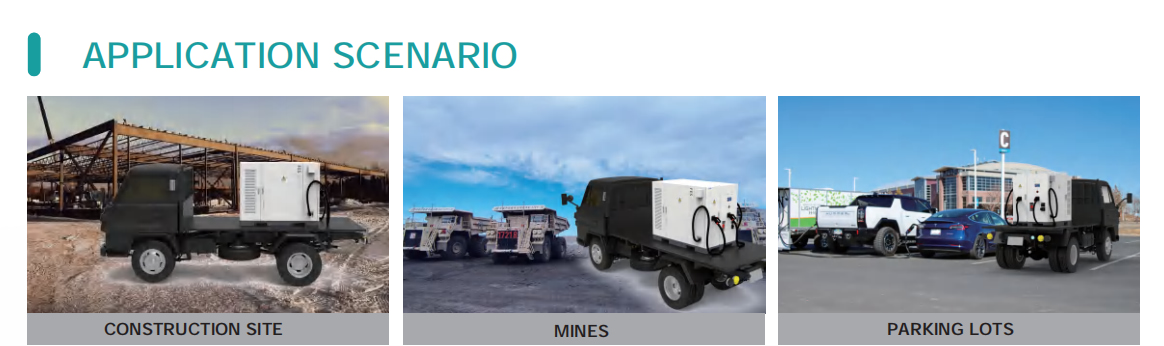

E-Station 120 Mobile EV charging power station With high power output DC120 KW, upto 209kW.h liquid-cooled battery capacity. Used for mobile emergency charging for EV, electric bus/truck, electric ferry etc. Used as an backup AC power source, a perfect substitution for diesel generator.
