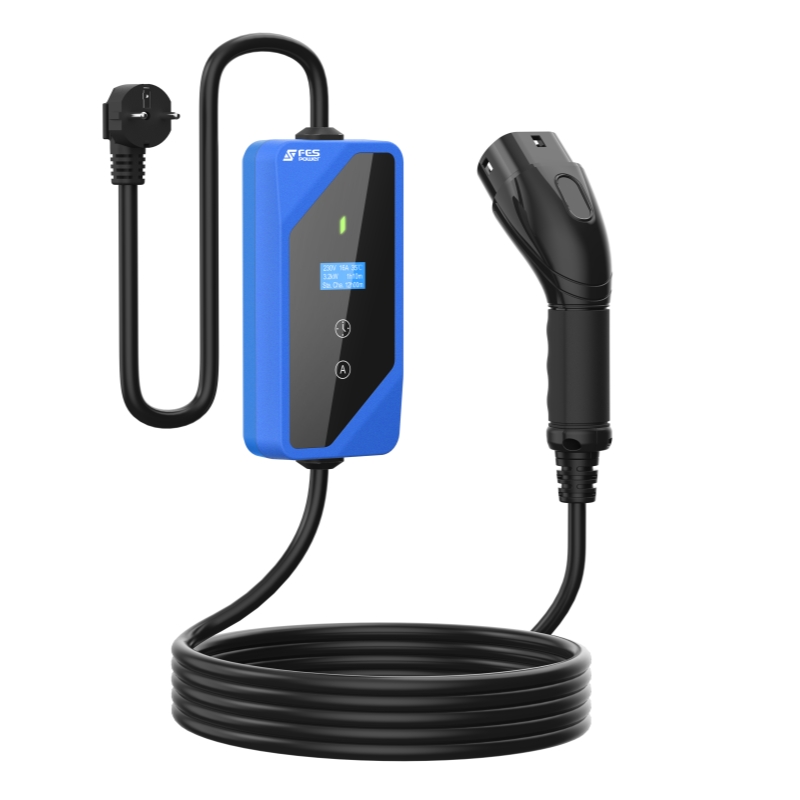

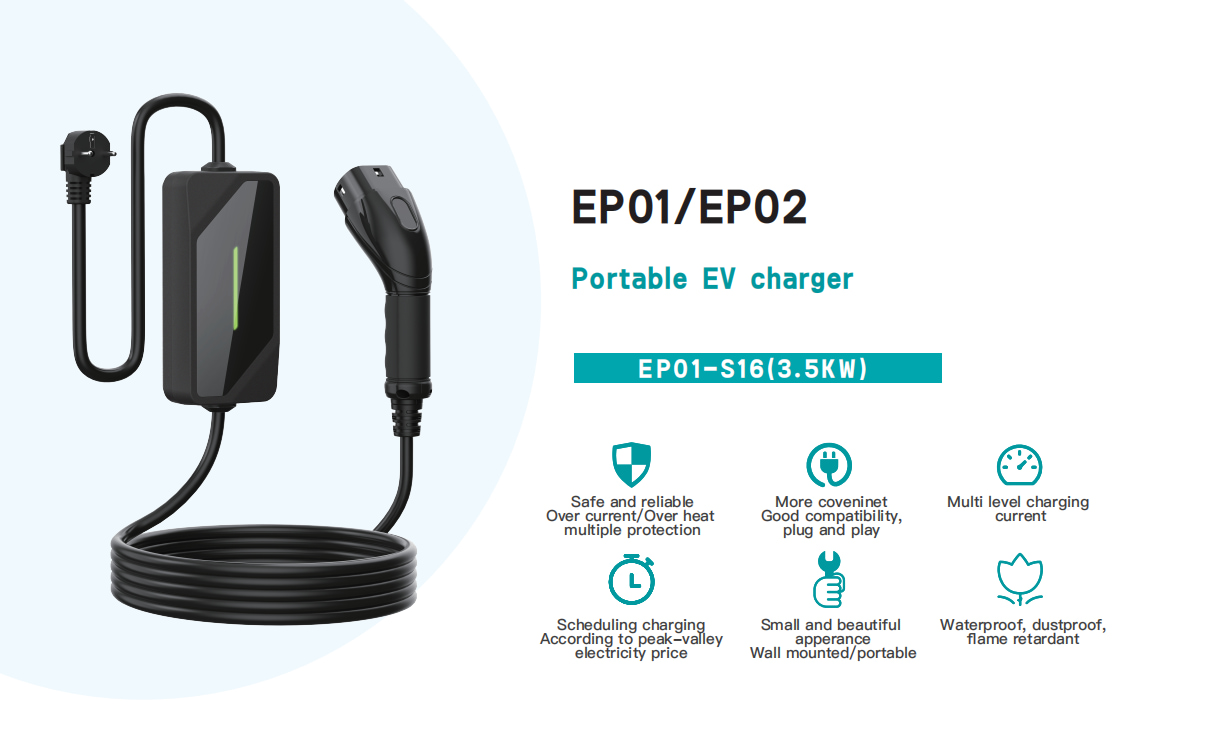

Portable EV Charger EP01/EP02 adopts a wire-winding design for space-saving and easy carrying with EVs.
It employs comprehensive electrical protection plus IP65 ingress proof and UV resistance to ensure charging safety.
| Item | EPO1/EP02-S16 | EPO1/EP02-S32 | ||
| Maximum Power | 3.5kW / 16A | 7kW / 32A | ||
| Voltage Range | Single Phase AC 230V ±10% | |||
| Frequency | 50/60Hz | |||
| Output Current | ≤ 16A | ≤ 32A | ||
| Cable Length | Standard 5 meters (can be customized) | |||
| Connector |
|
|
||
| Display screen | 3.5” LCD (Only EP02) | |||
| Dimension | 210 × 90 × 48mm (H*W*D) | |||
| Flame Retardant Grade | UL94V-0 | |||
| Color | Black(Front) + Black(Back) or OEM Color | |||
| Indicator | √ | |||
| Flame Retardant Grade | √ | |||
| Display | √ | |||
| Schedule Charging | √ | |||
| Ingress Protection | IP65， IK08 | |||
| Net Weight | 2.4kg | 3.7kg | ||
MORE DETAILS
FLEXIBLE OPTION
Portable type design, easily to carry
Can be charged using home AC socket
Cable length 5 meters (can be customized)
HIGH TEXTURE DESIGN
Multi colors indicator + OLED screen
Current adjustment with touching buttons
Customizable display screen
RELIABLE AND SAFETY
Type A 30mA + 6mA DC Leakage Protection
Multiple Protection Based on Software and Hardware
CE(EU), GB(China), ROHS Approved Certified
CE: EN 61851-1, EN 61000-6 electromagnetic compatibility
GB/T: 18487.1-2023 Chinese national charging standards
ROHS: Verified <1000ppm hazardous substance levels
The 7-22KW Wall-Mounted Smart AC EV Charger is a high-performance electric vehicle charging solution designed for home and commercial use. Featuring 4G connectivity (optional), this charger ensures stable operation in any location, providing flexibility for remote monitoring and control.
Portable EV Charger EP01/EP02 adopts a wire-winding design for space-saving and easy carrying with EVs. It employs comprehensive electrical protection plus IP65 ingress proof and UV resistance to ensure charging safety.
IPv6 network supported
