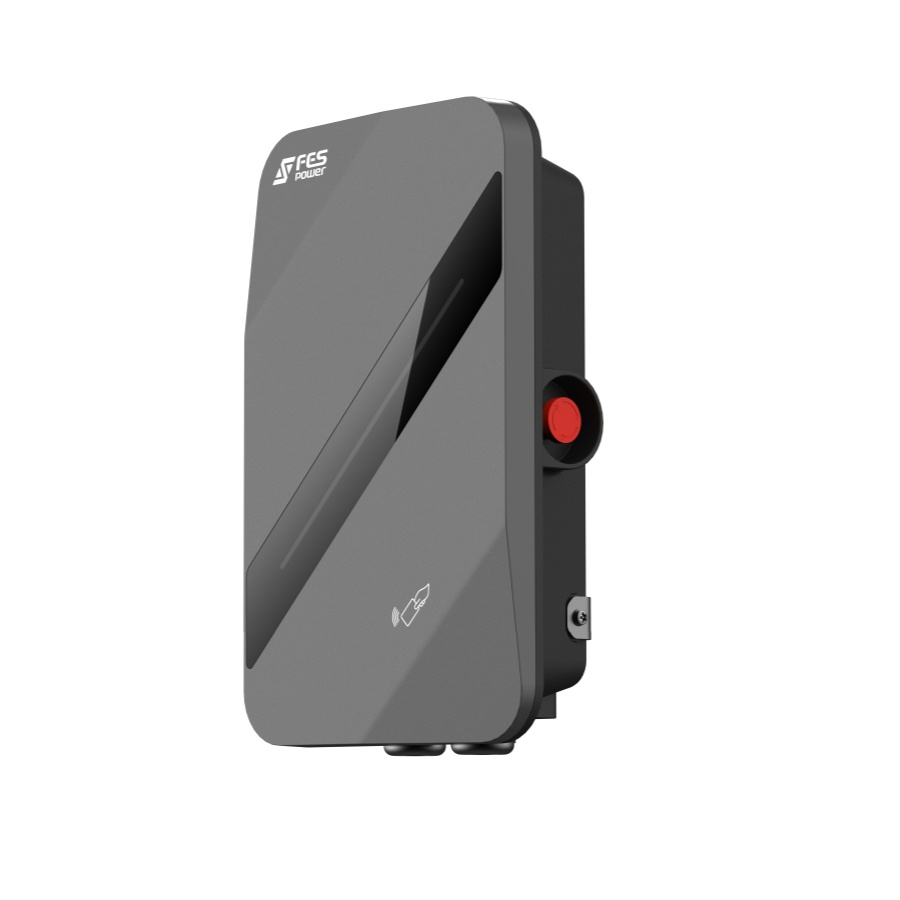

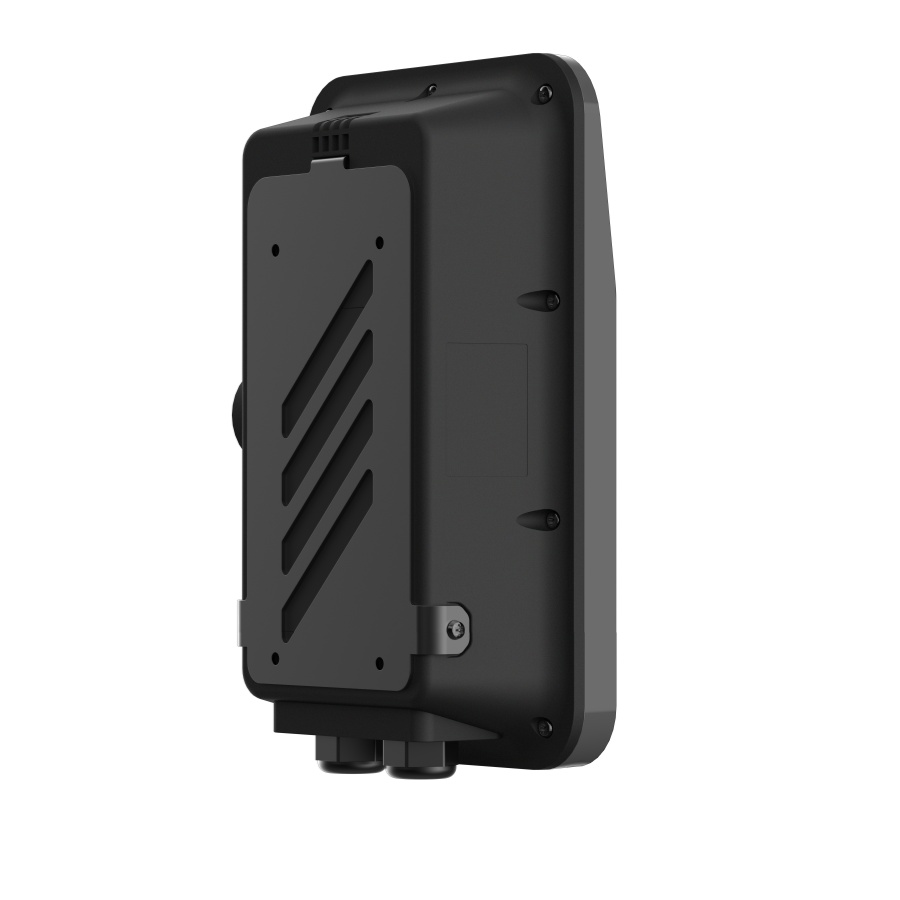

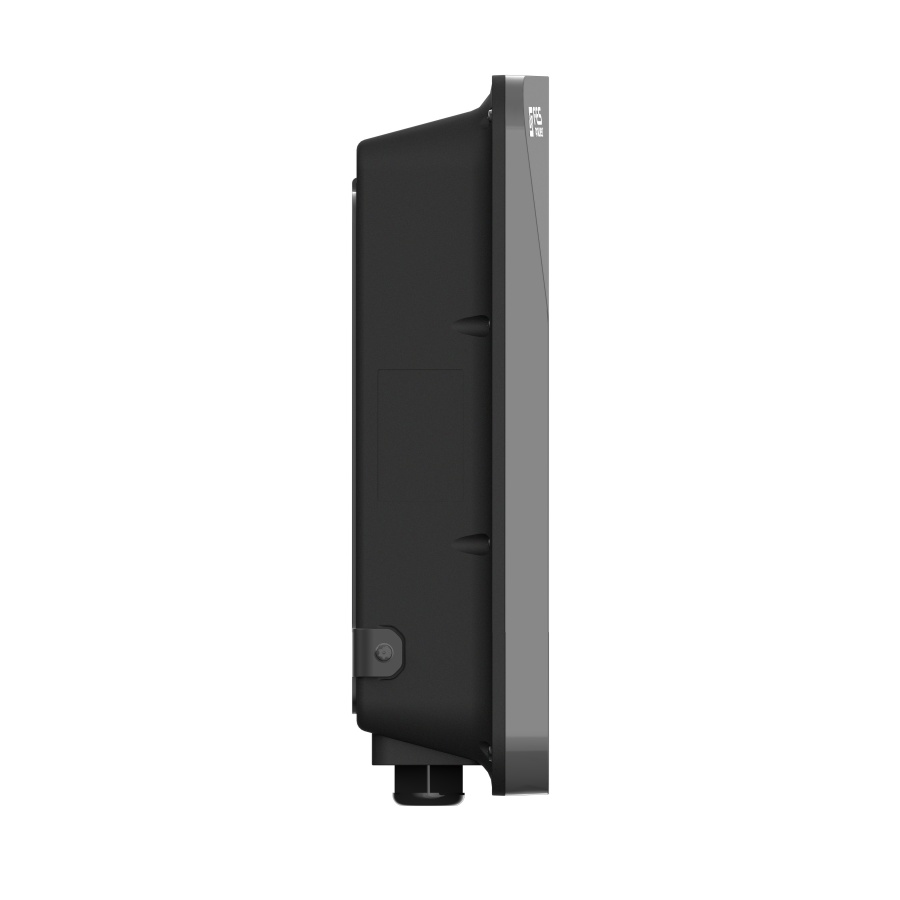

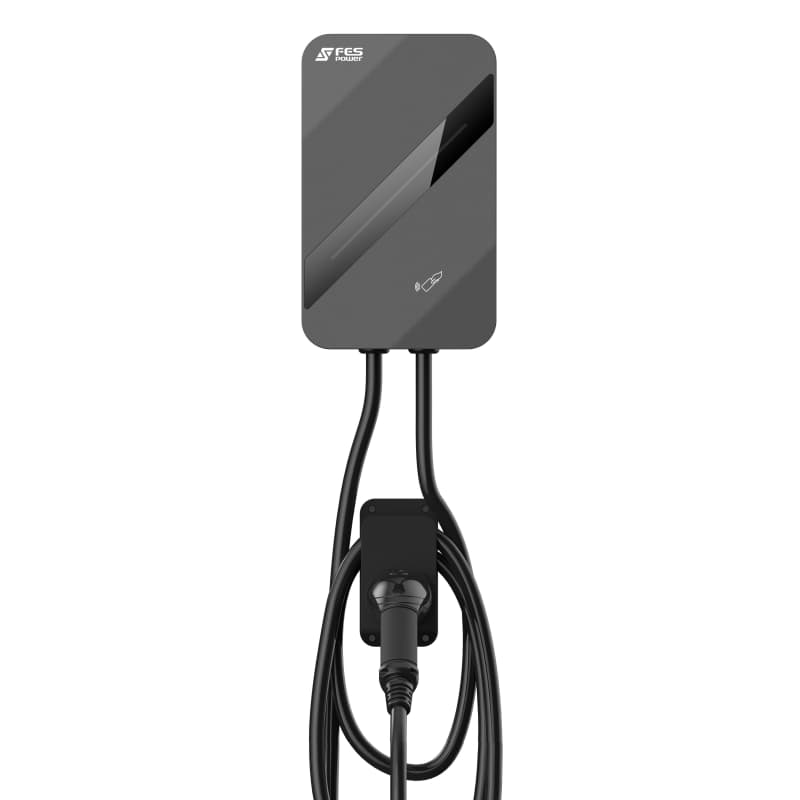

The 7-22KW Wall-Mounted Smart AC EV Charger is a high-performance electric vehicle charging solution designed for home and commercial use. Featuring 4G connectivity (optional),
this charger ensures stable operation in any location, providing flexibility for remote monitoring and control.
Item No :
EC01 (7-22KW)ELECTRICAL PARAMETERS
| Task volume | |
| Output voltage | 230Vac士10%(1- phase) or 400Vac土 10%(3-phase) |
| Output power | 7KW, 11KW, 22KW |
| Charging gun head standard | GB/T 18487.1 (national standard), IEC 62196-1 (Type2 European standard) / SAEJ1722 (American standard) |
| Network connection | Bluetooth, Wi-Fi, 4G optional |
| Operation authorization | Plug and charge, NFC card swipe, APP control |
| Emergency stop button | No |
| Operating temperature | -30~55℃ |
| Multiple protections | OTP, OVP, UVP, OCP, RCD, Short circuit, Surge protection, Earthing Leakage protection，Grounding etc. |
MORE DETAILS
FLEXIBLE OPTION
Multiple Startup Charging Methods
Enjoy versatile charging initiation options to suit different user preferences and scenarios.

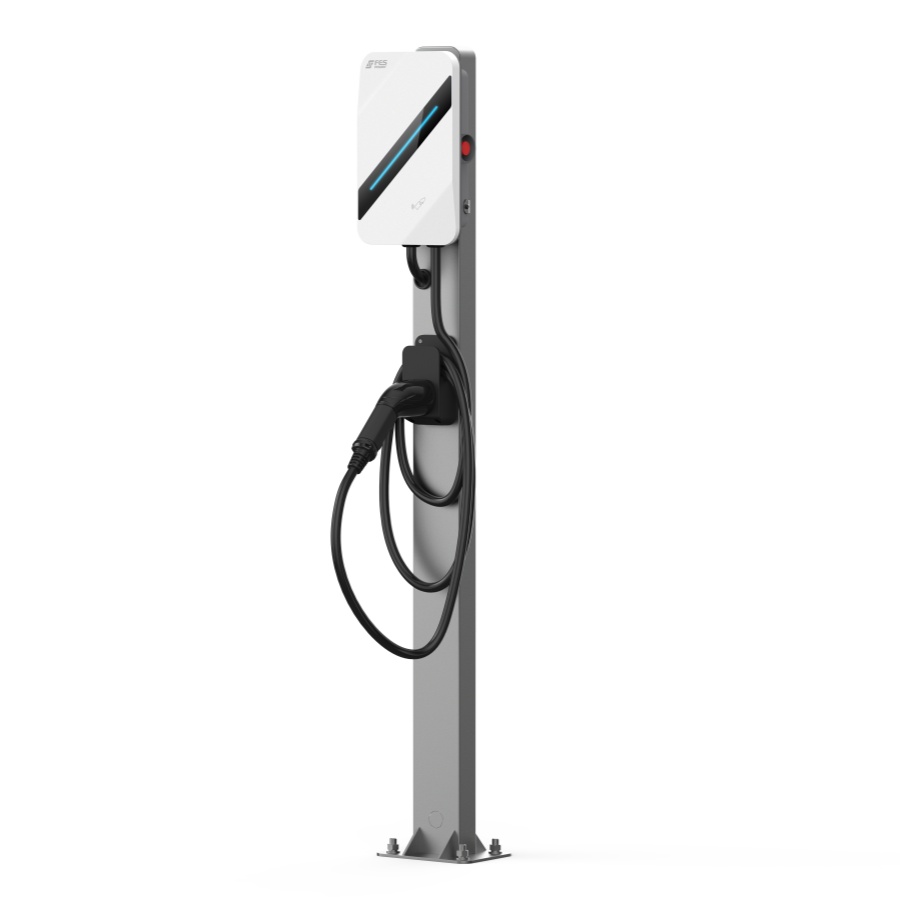

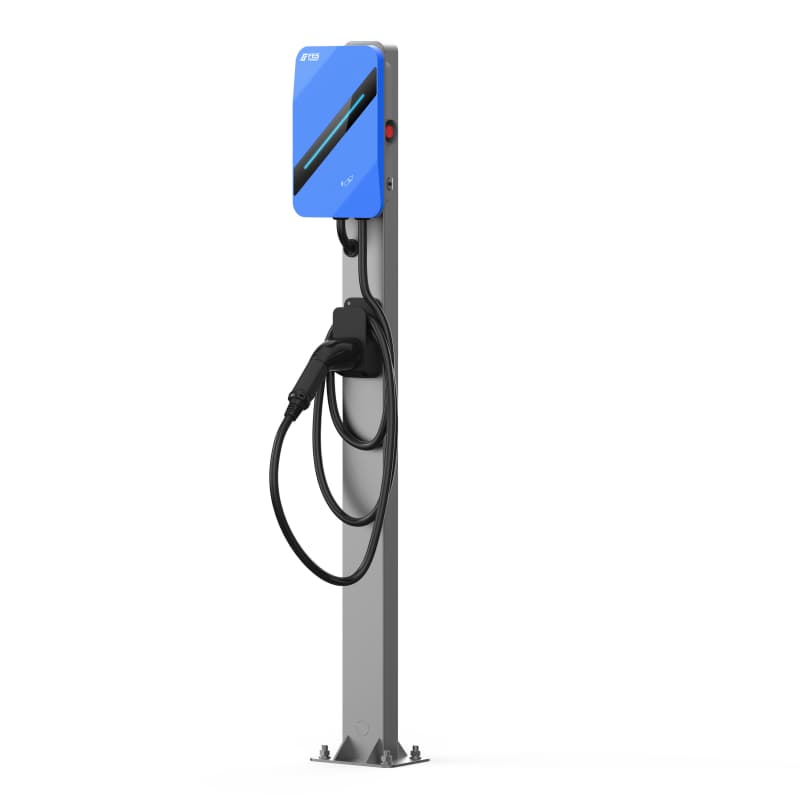

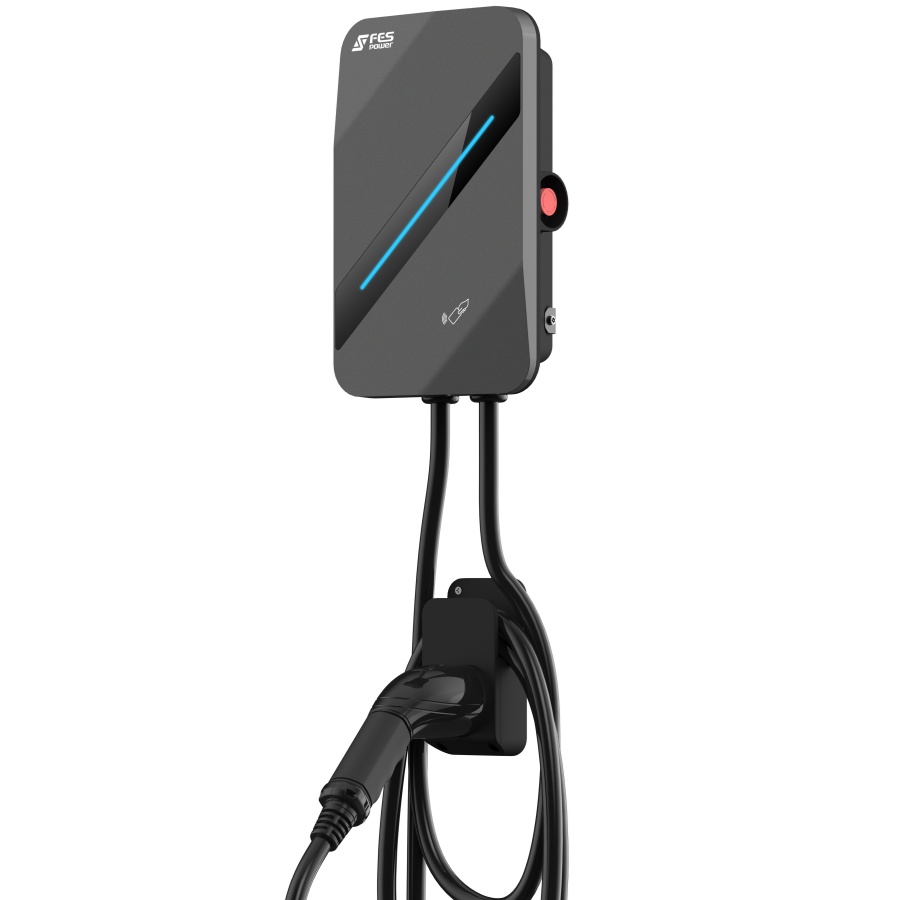

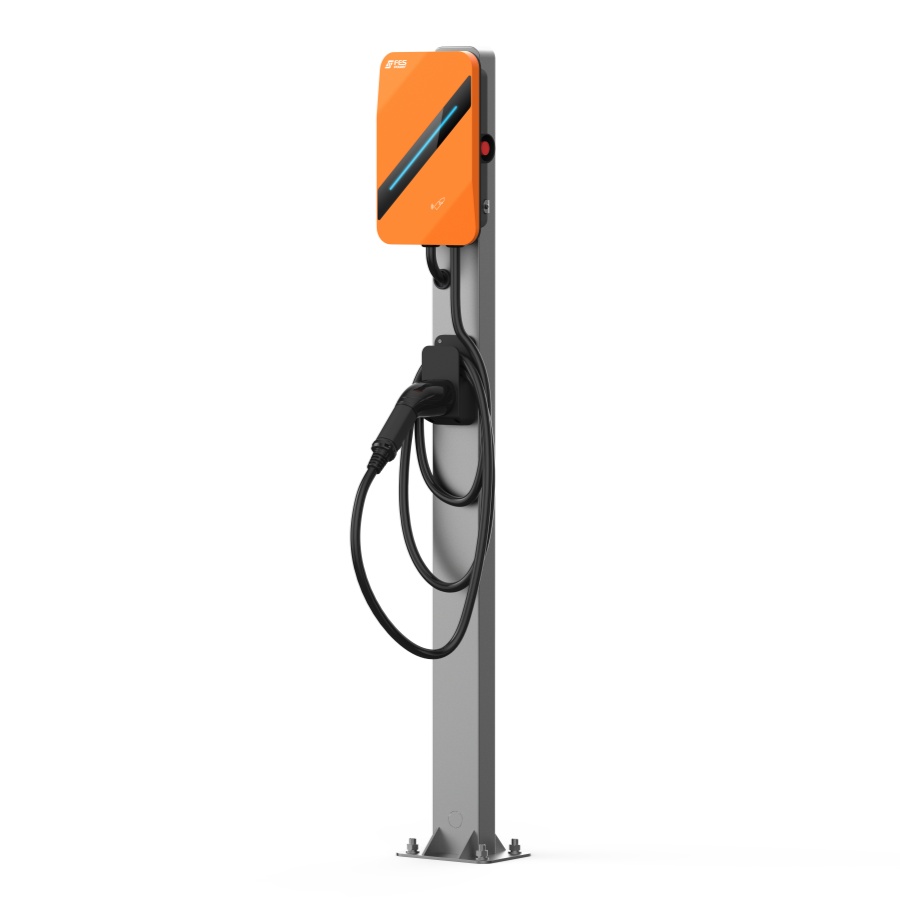

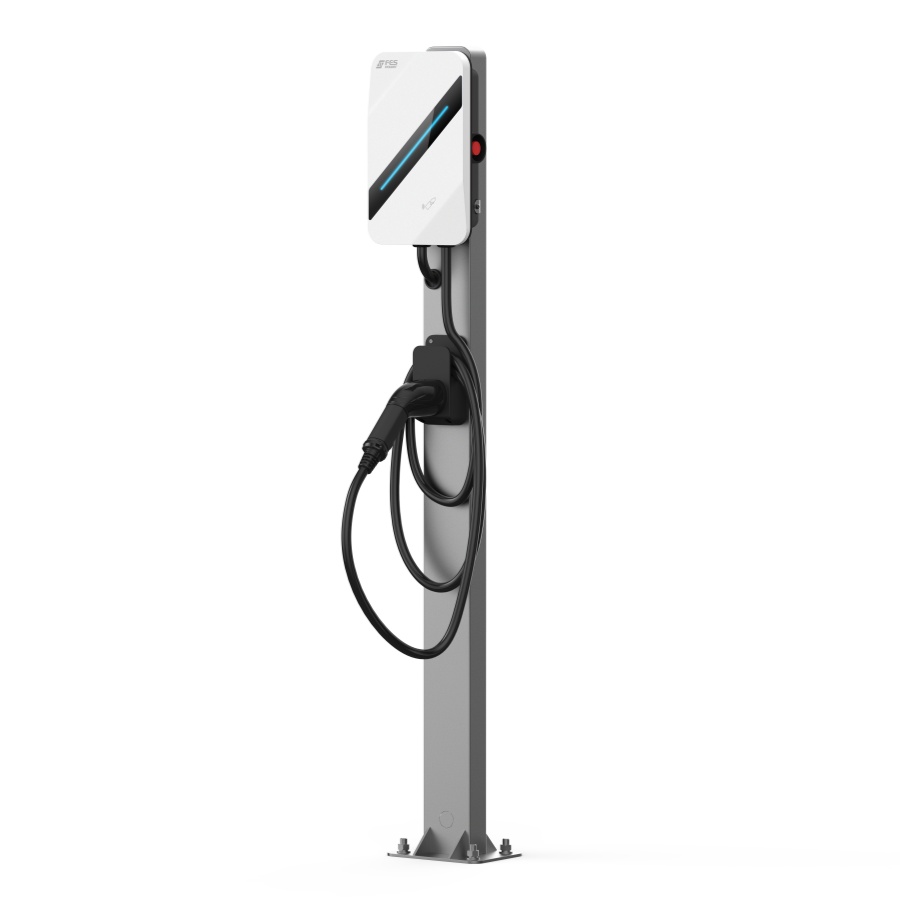

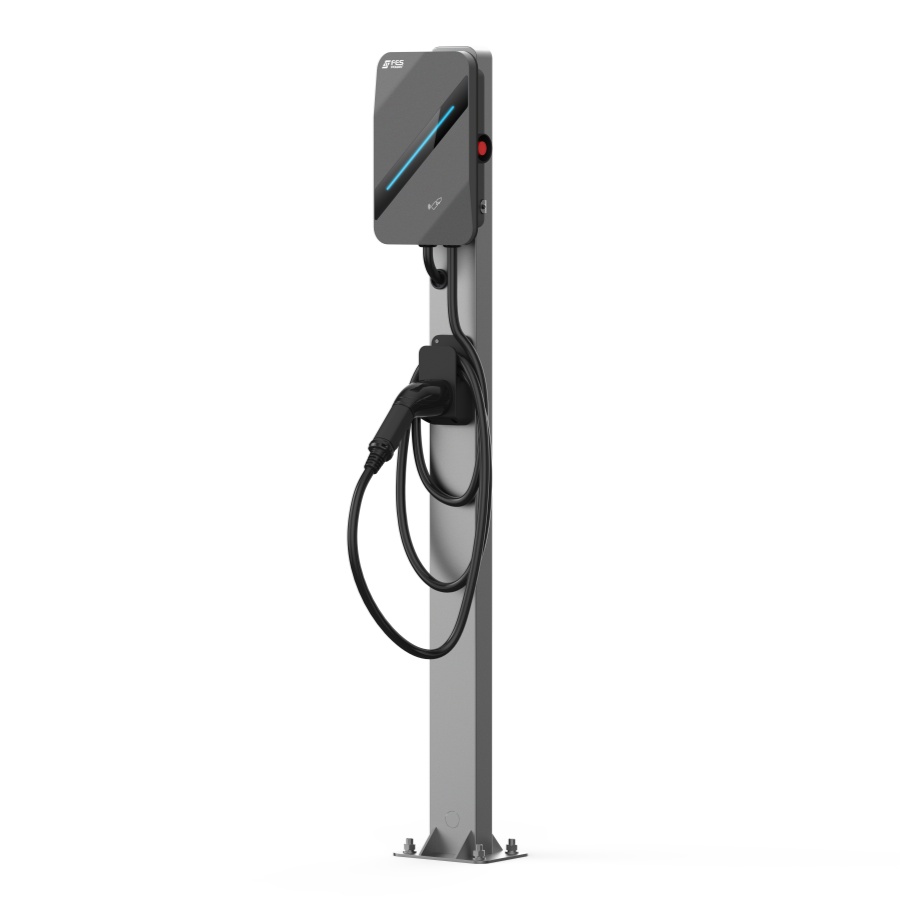

Wall-Mount or Floor Stand Installation
Adapt to any installation environment with dual mounting options—compact wall-mounted for space efficiency or sturdy floor-standing for areas without wall support.
Customizable Charging Cable Length (5m Typical / 15m Max)
Tailor the cable length to your parking layout, with standard 5m versions for home use and extendable options up to 15m for commercial or unconventional setups.
HIGH TEXTURE DESIGN

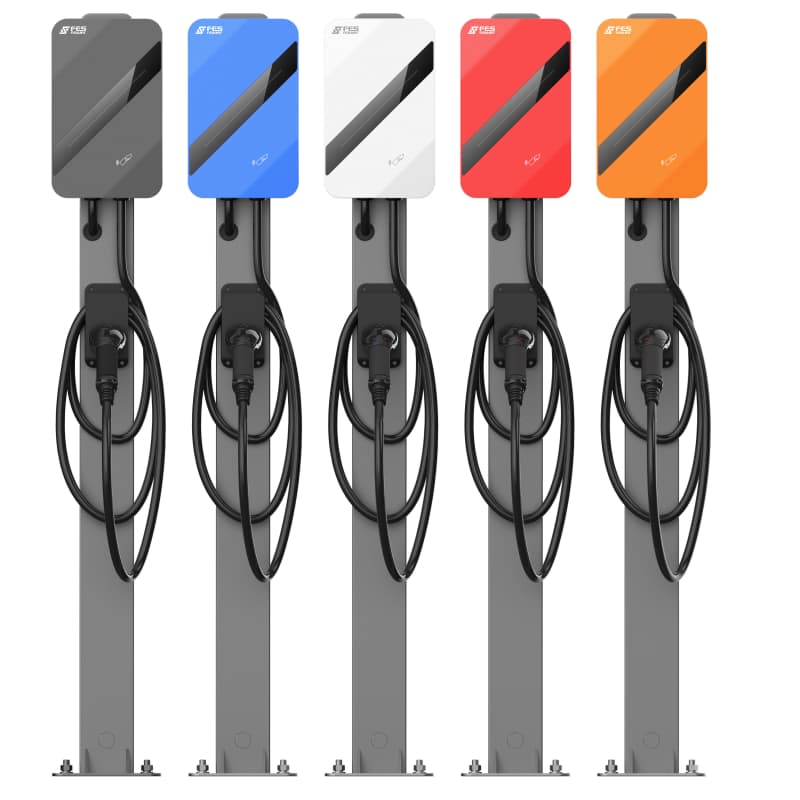

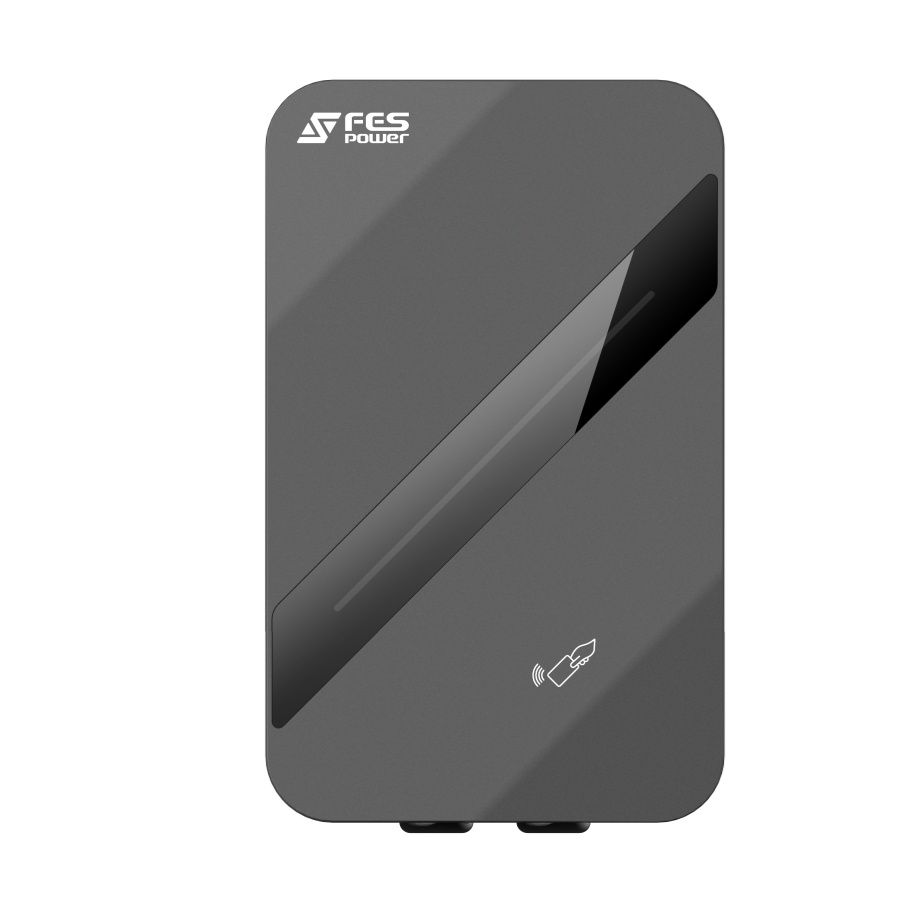

Multi Color Front Cover Optional
Enhance your charger's aesthetics with interchangeable front panels available in multiple standard colors.
Support Color Customization
Meet specialized design requirements with OEM color customization—provide your Pantone/RAL codes for perfect brand or environmental matching.
Multi Color Indicator Light
Intuitive LED status lights (RGB capable) display real-time operational states—blue for standby, green for charging, and red for faults—with adjustable brightness for day/night visibility.
RELIABLE AND SAFETY
Type A 30mA + 6mA DC Leakage Protection
Ensures comprehensive electrical safety by combining Type A AC leakage detection with specialized 6mA DC residual current monitoring.
Multiple Protection Based on Software and Hardware
Real-time load balancing, ground fault simulation testing, and firmware-verified command execution
CE(EU), GB(China), ROHS Approved Certified
CE: EN 61851-1, EN 61000-6 electromagnetic compatibility
GB/T: 18487.1-2023 Chinese national charging standards
ROHS: Verified <1000ppm hazardous substance levels
The 7-22KW Wall-Mounted Smart AC EV Charger is a high-performance electric vehicle charging solution designed for home and commercial use. Featuring 4G connectivity (optional), this charger ensures stable operation in any location, providing flexibility for remote monitoring and control.
