What Types of Ultra-Fast EV Chargers Are Available on the Market?

As electric vehicles continue to gain momentum worldwide, ultra-fast charging has become a critical part of modern EV infrastructure. But the term “ultra-fast charger” can refer to very different technologies and system designs.

So, what types of ultra-fast EV chargers are actually available on the market today? This article provides a clear, practical overview from a technical and application-focused perspective.

🔋What Is Considered an Ultra-Fast EV Charger?

In general, the industry defines ultra-fast charging as DC charging systems with power levels of 150 kW and above. In high-demand scenarios such as highways, charging hubs, and fleet depots, total system power can reach 300 kW, 480 kW, or even 960 kW and beyond.

The goal of ultra-fast charging is not only shorter charging time, but also:

✨Higher station throughput

✨Better power utilization

✨Scalability for future EV models

⚙️What Is an Integrated DC Fast Charger?

Integrated DC fast chargers combine the power modules, control system, and charging connectors into a single cabinet.

Key characteristics:

💫Typical power range: 60–240 kW

💫Compact, all-in-one design

💫Easier and faster to deploy

Common applications:

🟠Commercial parking lots

🟠Small public charging sites

🟠Early-stage EV infrastructure projects

While integrated chargers are convenient, their fixed power configuration limits flexibility when multiple vehicles need to charge simultaneously.

🔌What Is a Split-Type DC Charging System?

A split-type (or separated) DC charging system divides the charging infrastructure into:

🔸A central power cabinet

🔸Multiple charging dispensers

Advantages include:

🔸Total system power up to 360–960 kW

🔸Power shared among multiple charging points

🔸Easier expansion without replacing the entire system

This architecture has become the mainstream solution for ultra-fast charging stations, especially where high utilization is required.

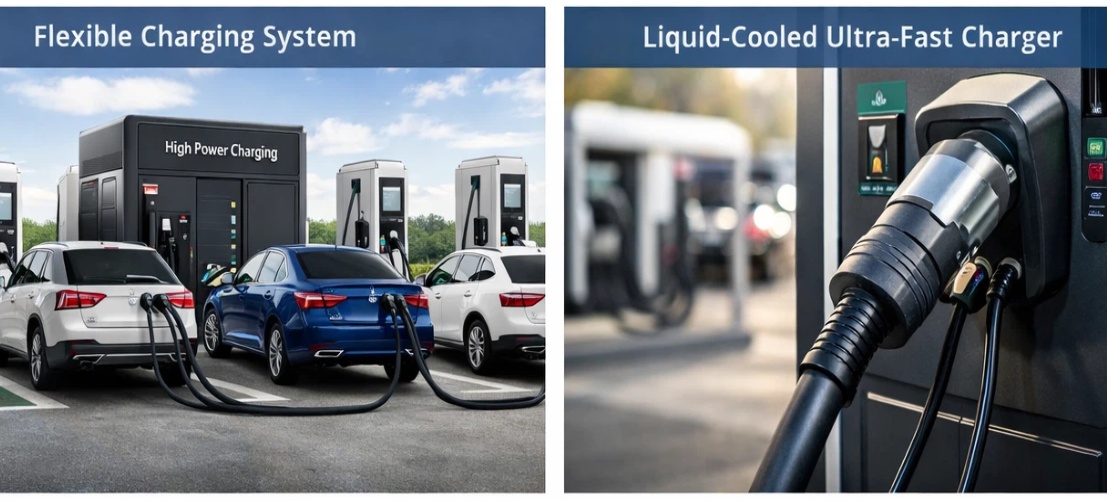

🔄What Is a Flexible or Dynamic Charging System?

Flexible charging is not a standalone hardware category, but a system-level capability.

It allows power to be:

🔅Dynamically allocated based on vehicle demand

🔅Adjusted in real time during charging

🔅Shared efficiently across multiple vehicles

For example, instead of assigning fixed power per connector, a flexible system can distribute power such as 200 kW + 120 kW + 80 kW simultaneously—maximizing the use of available capacity.

This approach is essential for busy charging hubs and fleet operations.

🏗️What Is a Centralized Ultra-Fast Charging System?

A centralized ultra-fast charging system focuses on delivering very high total power from a shared power source.

Typical features include:

🔅Centralized power cabinets (e.g. 480–960 kW)

🔅Modular power units

🔅Support for 2–16 simultaneous charging points

Ideal use cases:

🔻Highway service areas

🔻Urban fast-charging hubs

🔻Logistics fleets and bus depots

Centralized systems reduce infrastructure redundancy and improve long-term operational efficiency.

❄️Why Are Liquid-Cooled Chargers Important for Ultra-Fast Charging?

As single-connector power levels exceed 250 kW, traditional air-cooled charging cables become heavy and difficult to handle.

Liquid-cooled charging technology enables:

🟡Higher current output (500A–600A)

🟡Thinner, lighter cables

🟡More stable high-power performance

This makes liquid-cooled dispensers a key component of modern ultra-fast charging solutions.

 🧠How Should Operators Choose the Right Ultra-Fast Charging Solution?

When selecting an ultra-fast charging system, operators should consider:

🔴Number of vehicles charging simultaneously

🔴Required charging time per vehicle

🔴Grid connection capacity

🔴Future expansion plans

For long-term operation, split-type, flexible, and centralized architectures offer the best balance between performance and scalability.

🌍How Do Modern Solutions Address These Needs?

Advanced solutions, such as FES Power’s high-power DC charging systems, combine:

🟣480–960 kW centralized power cabinets

🟣Wide voltage range (150–1000 V)

🟣Dynamic power distribution

🟣Support for liquid-cooled dispensers

These systems are designed to meet the real-world demands of ultra-fast charging today while remaining ready for tomorrow’s EV technologies.

✅Conclusion: What Do Ultra-Fast Chargers Really Have in Common?

Although ultra-fast chargers come in different forms, the most effective solutions share the same core principles:

🔵High total power

Intelligent power management

Flexible system design

🔋Understanding these differences helps operators, investors, and planners build charging infrastructure that is not only fast—but also efficient and future-proof.
