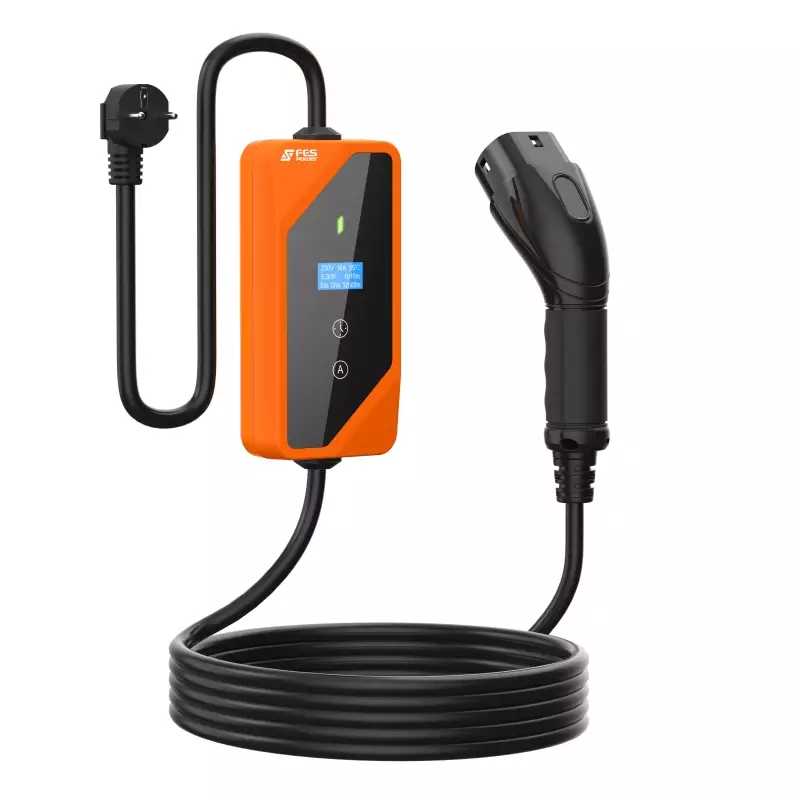

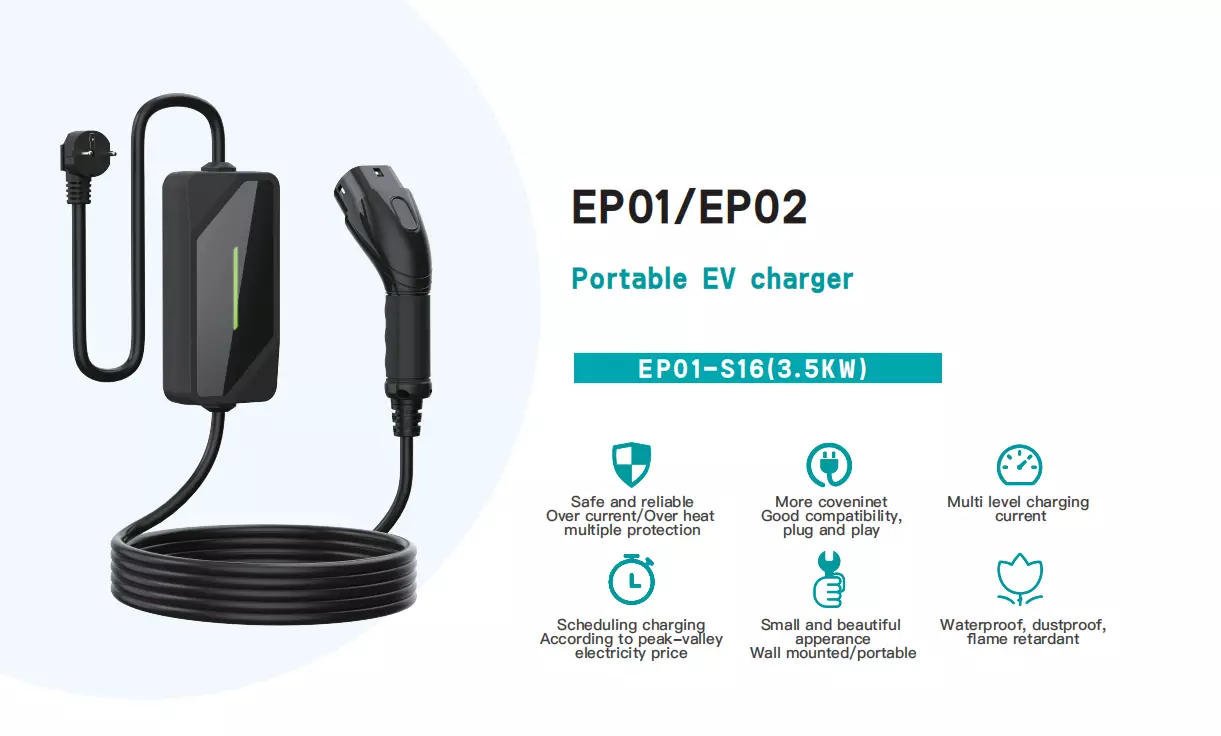

EP01/EP02 Portable Charger For Electric Vehicles
Portable EV Charger EP01/EP02 adopts a wire-winding design for space-saving and easy carrying with EVs.
It employs comprehensive electrical protection plus IP65 ingress proof and UV resistance to ensure charging safety.
Product Details
| Item | EPO1/EP02-S16 | EPO1/EP02-S32 |
| Maximum Power | 3.5kW / 16A | 7kW / 32A |
| Voltage Range | Single Phase AC 230V ±10% | |
| Frequency | 50/60Hz | |
| Output Current | ≤ 16A | ≤ 32A |
| Cable Length | Standard 5 meters (can be customized) | |
| Connector | GB/T(CN) | Type 2(EU) |
| Display screen | 3.5″ LCD (Only EP02) | |
| Dimension | 210 × 90 × 48mm (H*W*D) | |
| Flame Retardant Grade | UL94V-0 | |
| Color | Black(Front) + Black(Back) or OEM Color | |
| Indicator | √ | |
| Flame Retardant Grade | √ | |
| Display | √ | |
| Schedule Charging | √ | |
| Ingress Protection | IP65， IK08 | |
| Net Weight | 2.4kg | 3.7kg |
MORE DETAILS
 |
FLEXIBLE OPTION
Portable type design, easily to carry Can be charged using home AC socket Cable length 5 meters (can be customized) |
| HIGH TEXTURE DESIGN
Multi colors indicator + OLED screen Current adjustment with touching buttons Customizable display screen |
 |
 |
RELIABLE AND SAFETY
Type A 30mA + 6mA DC Leakage Protection
Multiple Protection Based on Software and Hardware
CE(EU), GB(China), ROHS Approved Certified CE: EN 61851-1, EN 61000-6 electromagnetic compatibility GB/T: 18487.1-2023 Chinese national charging standards ROHS: Verified <1000ppm hazardous substance levels |
