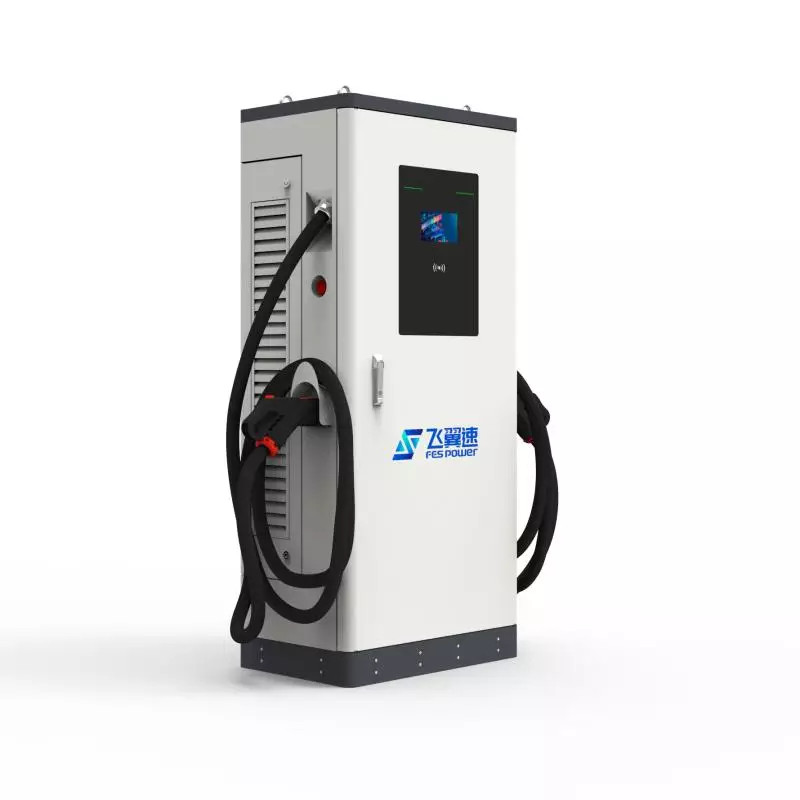

D30 Ultra rapid EV charger 120/160kW
With speeds of between 60-180kW (ultra-rapid), these chargers allow you to fully charge (80%) in 10 minutes – 1 hour.
The share of EV rapid and ultra-rapid charge points is accelerating. This trend will vastly impact electric vehicle drivers, slashing recharging times and massively reducing range anxiety among electric vehicle motorists. ower Range: 60kW – 120kW
Product Details
MORE DETAILS
| Model No. D30-120 D30-180 | |||
| AC Input | Number of phase/wire | 3-Phase / L1,L2,L3,N,PE | |
| Voltage Rating | 380~415Vac | ||
| Max.Input Amperage | 220A | 300A | |
| Frequency | 55Hz ±10Hz | ||
| Power factor | PF≥0.98@Rated load | ||
| Efficiency | >91% | ||
| DC Output | Maximum Power | 120KW | 180KW |
| Voltage Operating Range | 200-1000V | ||
| Maximum Current | 250A | ||
| Connector and Cable | CCS2 with 4M cable | ||
| Function | |||
| EV Communication | ISO 15118 | ||
| User Authentication | ISO 14443 A/B | ||
| Display | 7 inch touch screen | ||
| Network | Ethernet,4G,Wi-Fi | ||
| Connectivity | OCPP 1.6J | ||
| Environment | |||
| Storage Temperature | -30℃ to 70℃ | ||
| Operating Temperature | -20℃ to 50℃ | ||
| Anti-vandalism | IK10(not include LCD &RFID cover) | ||
| Ingression | IP54 | ||
| Relative Humidity | Up to 95%non-condensing | ||
| Cooling | Forced Air | ||
| Operating noise level | ≤65dB | ||
| Altitude | ≤2000M | ||
 |

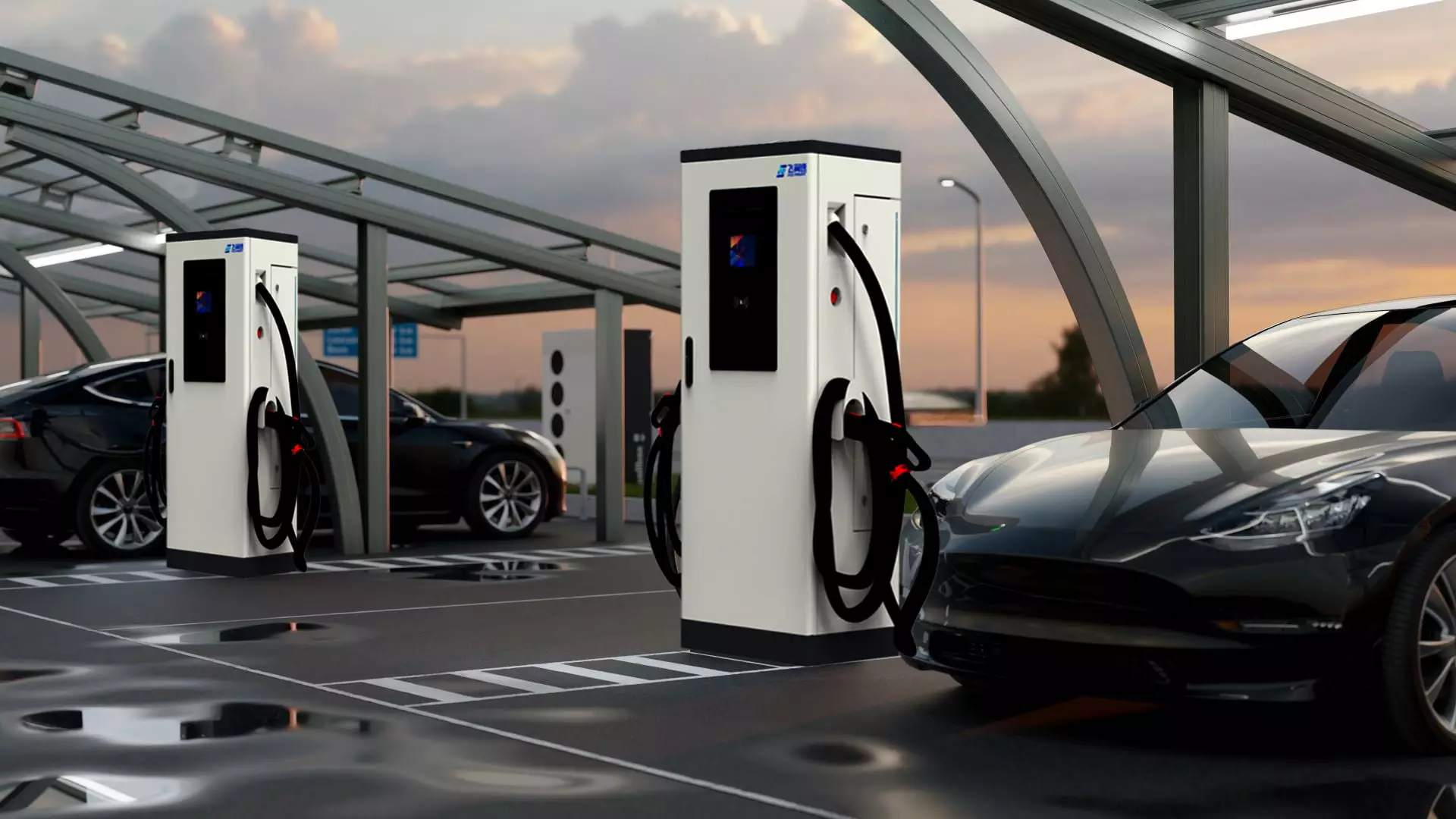

Ultra Rapid EV charging
Next-level EV charging, rapid and ultra-rapid chargers are perfect for a quick turnaround and are usually found on major routes, at charging hubs, and on-the-go locations. With speeds of between 60-180kW (ultra-rapid), these chargers allow you to fully charge (80%) in 10 minutes – 1 hour. The share of EV rapid and ultra-rapid charge points in the UK is accelerating. This trend will vastly impact electric vehicle drivers, slashing recharging times and massively reducing range anxiety among electric vehicle motorists. |

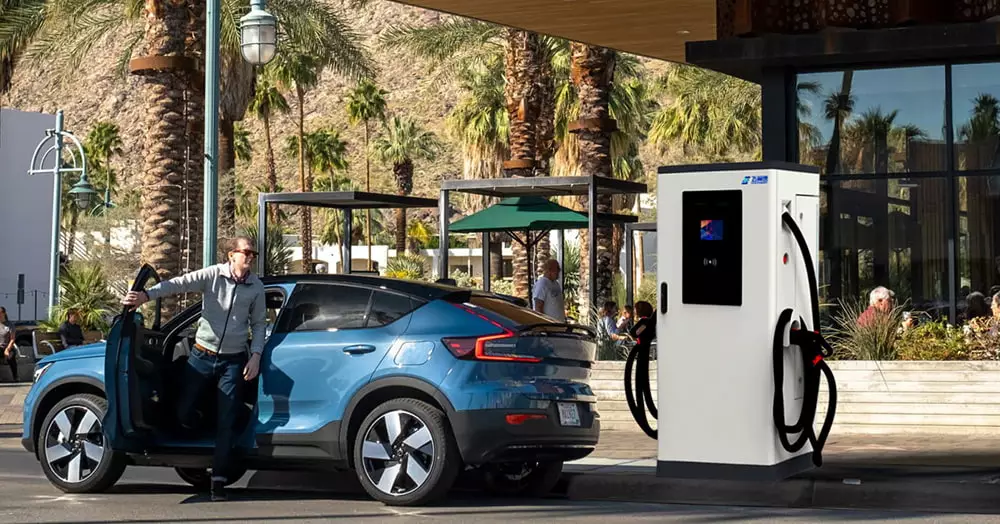

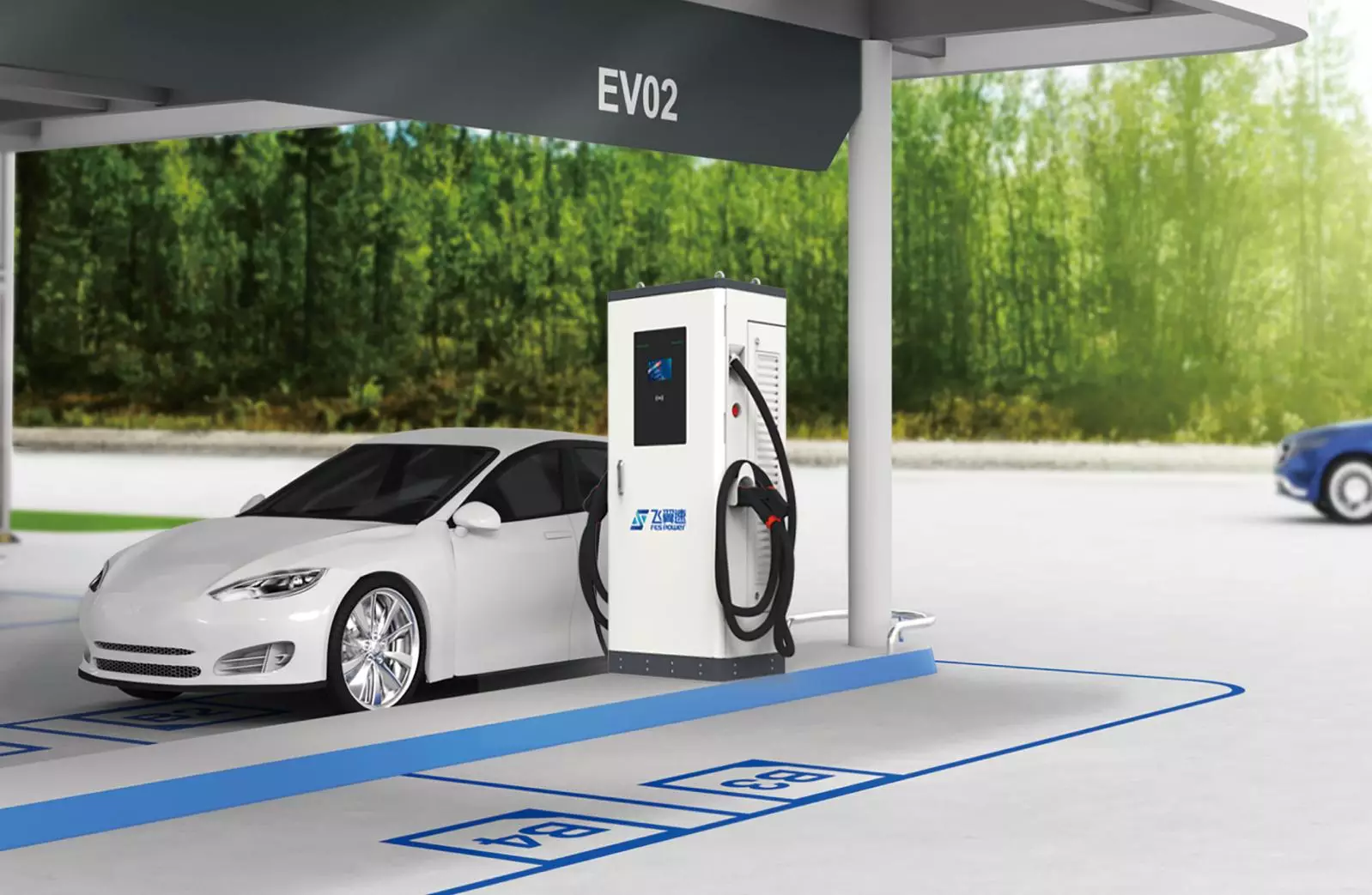

| Ideal for for fleet depots, commercial & public charging.
With a maximum power of 240KW and a charging conversion efficiency of up to 96%, the D30 provides fast and stable charging for electric vehicles. It offers two charging modes: App mode and RFID mode, and is equipped with an emergency stop button, allowing flexible charging in various scenarios. |
 |
 |
RELIABLE AND SAFETY
Type B DC Leakage Protection Ensures comprehensive electrical safety by combining leakage detection with specialized 6mA DC residual current monitoring.
Multiple Protection Based on Software and Hardware Real-time load balancing, ground fault simulation testing, and firmware-verified command execution. |
